Aviation fluid fittings solutions

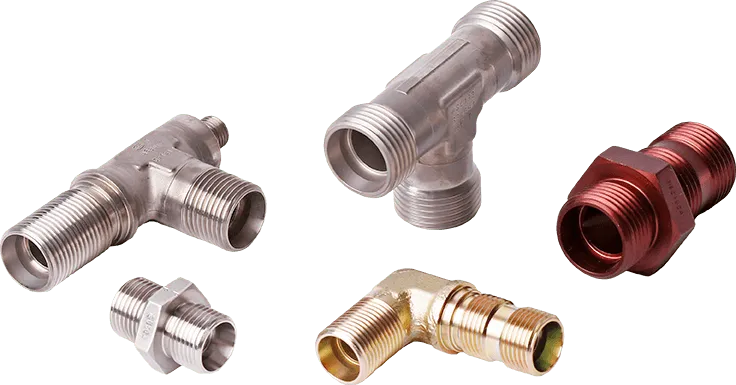

Permaswage has over 50 years of experience in manufacturing high - quality separable fittings to industry and customer standards, using total quality management to ensure precision - crafted hydraulic fluid fittings in materials like aluminum, steel, stainless steel, titanium, and brass.

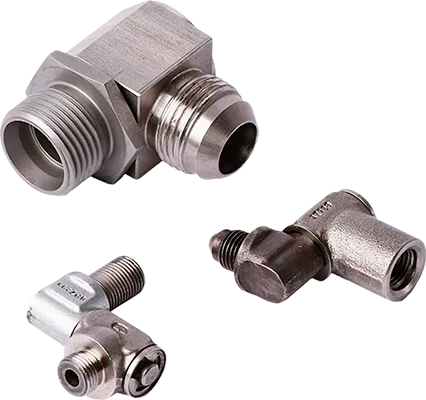

Swivel components reduce hose and tubing bending, movement, and internal stresses while dampening vibration, and are available in various sizes and materials (aluminum, stainless steel, titanium) with different port connections (flared, flareless, lipseal), featuring a two-piece seal design for low rotary torque and long seal life, and can be used with both permanent and separable connections, including custom-designed fittings.

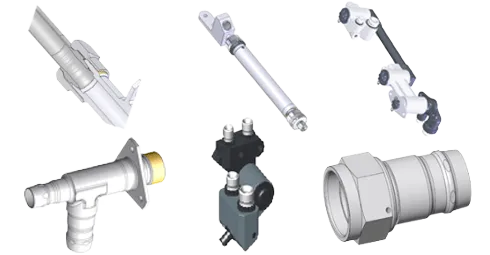

Permaswage has the resources to provide solutions for all types of applications.Contact Permaswage by Requesting a Quote for any configurations, materials, or special dimensions not listed in our catalog.

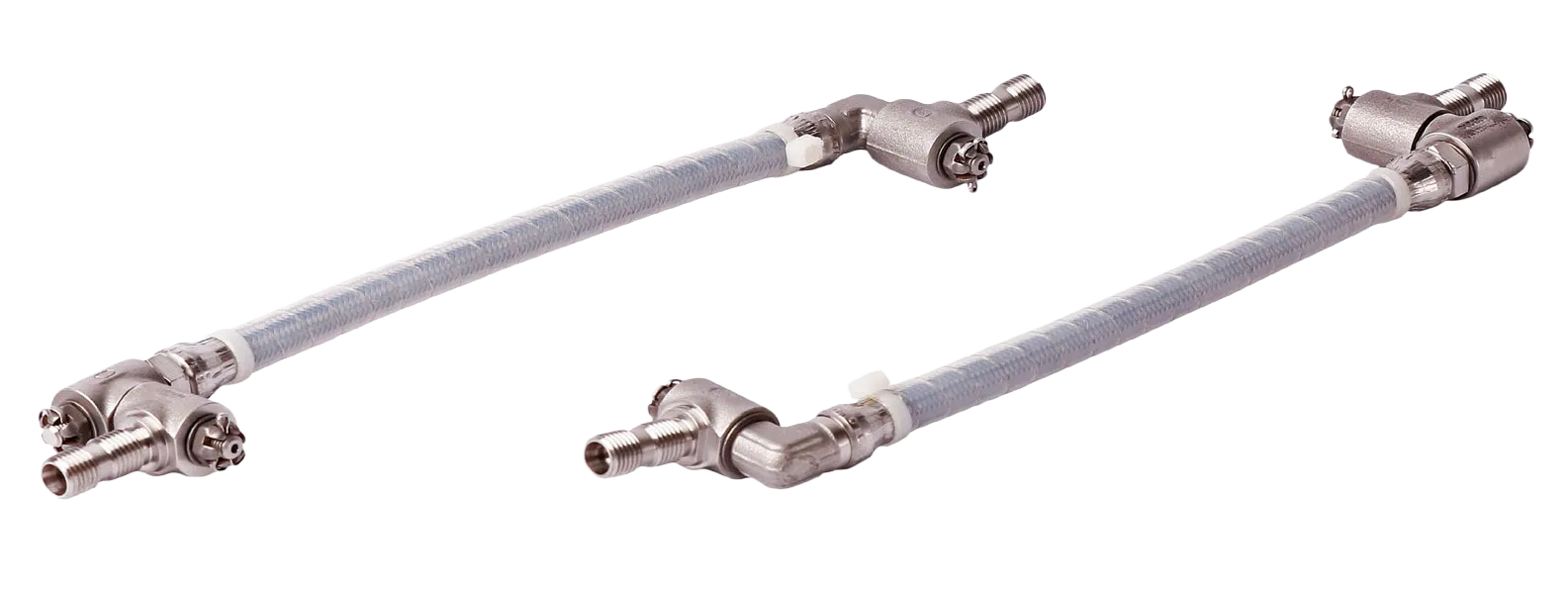

Permaswage® hoses, suitable for power plant, air frame, or vacuum systems, carry hydraulic fluids, engine fuels, and coolants at temperatures from -65°F to 250°F, with sizes 04-12 double wire braided and size 16 triple wire braided, and are available with various braid options and fittings in any material, size, or shape, including custom options.

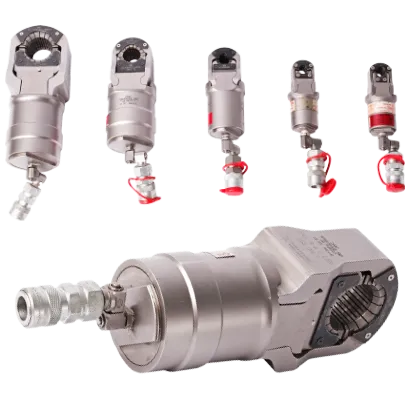

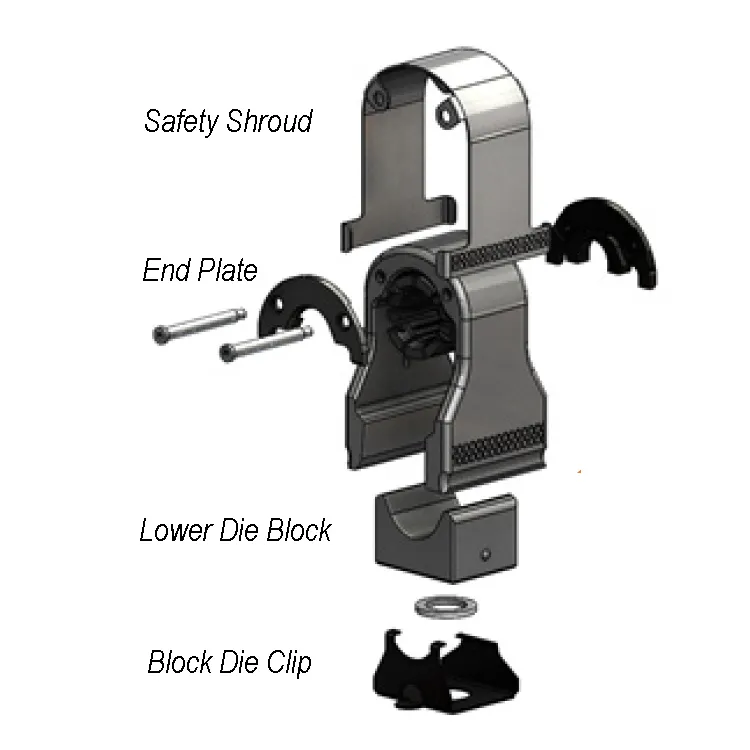

Permaswage system is a tube connecting system that permanently and separably attaches metal fittings to tubes by radial swaging using the Permaswage Lightweight Tool (DLT). It achieves this by deforming the fitting radially, 360° around the tube's circumference.

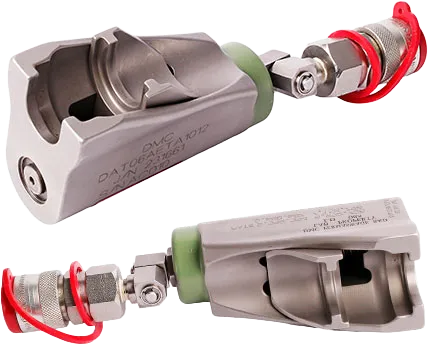

An axial swaged fitting is a tube fitting that is mechanically attached to the tube by axially deforming a ring component of the Permalite/AS Fitting using the Permaswage Axial Swage Tool (DAT). This process creates an interference fit, resulting in a leak - resistant metal - to - metal seal and a structurally sound joint.

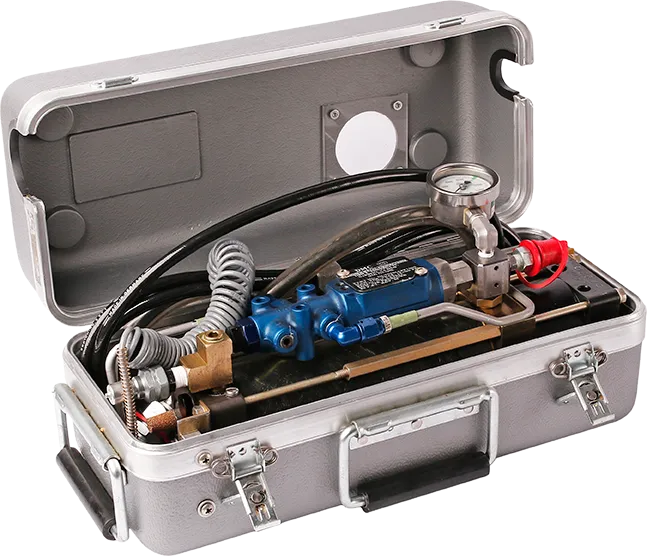

Manual pumps and pneumatic pumps provide a stable power source output for tool swaging.

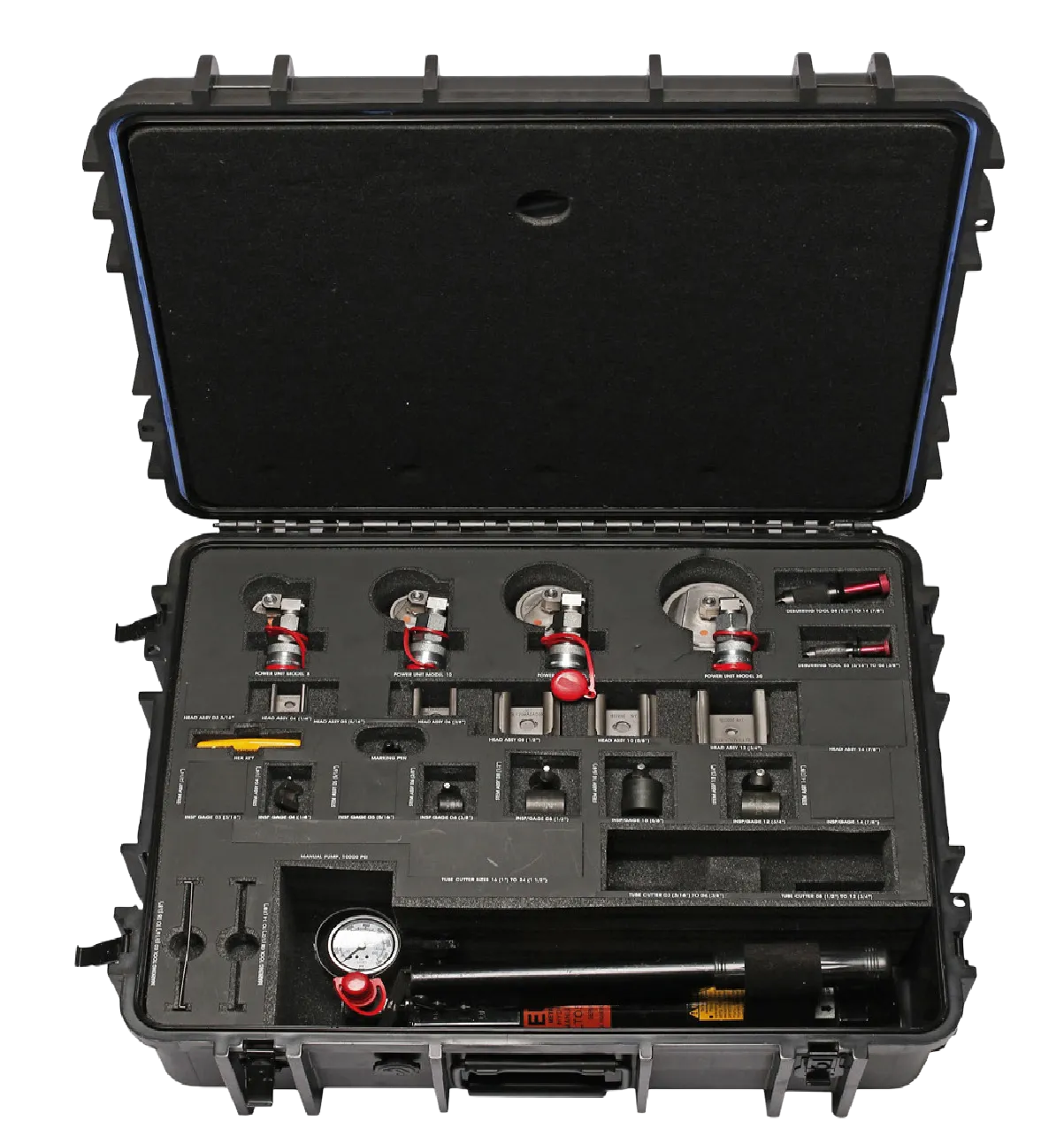

Permaswage DTL tool-kit is used for the radial swaging of tube fittings with specifications ranging from 03 to 24. The tool-kit contains all the necessary accessories for the production and repair of 3000 PSI hydraulic tube connecting system. Since the system is portable, it can be used for on - site MRO as well as in the user's production workshop.

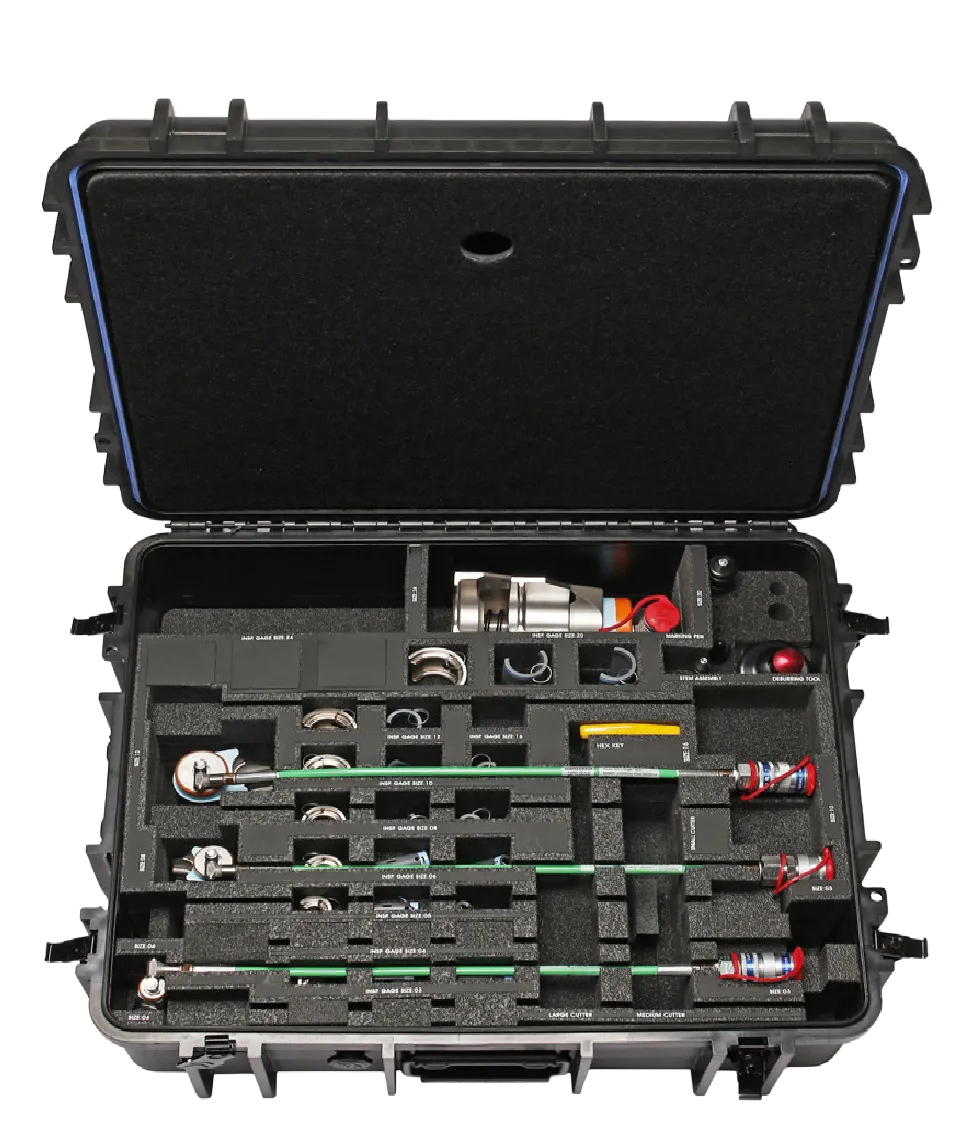

Permaswage DAT tool - kit is used for the axial swaging of tube fittings with specifications ranging from 04 to 20. The tool - kit contains the accessories required for the production and repair of 5000 PSI hydraulic tube connecting system. Since the system is portable, it can be used for on - site MRO as well as in the user's production workshop.
To maximize performance, tools should be regularly inspected and maintained to ensure structurally sound results, prevent breakage, and keep them ready for production, with Cyphen Limited providing proprietary and standard components, tooling, and training to major aerospace companies.

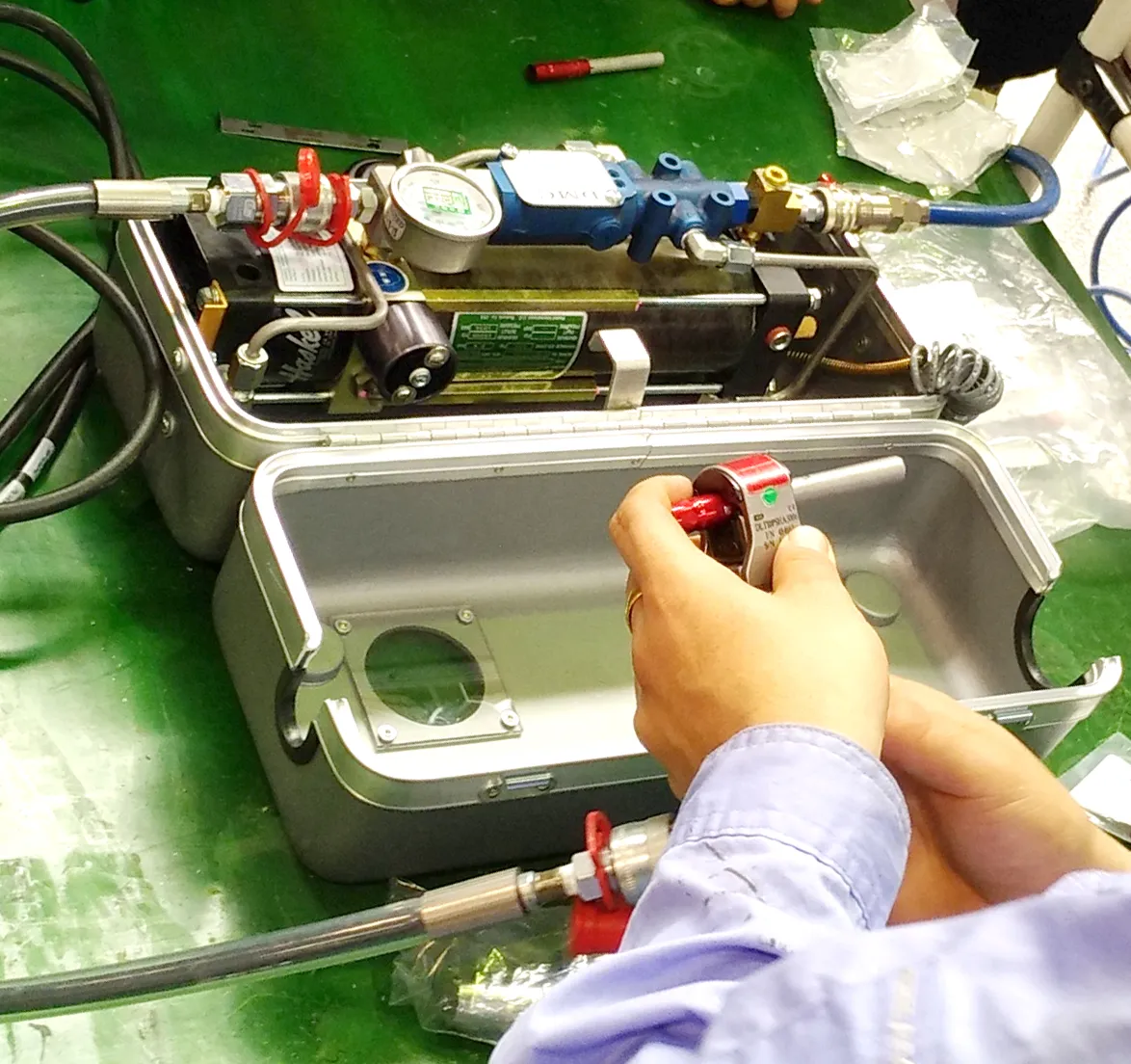

Permaswage's tooling systems should only be used by personnel with factory-authorized training and certification, which includes a Permaswage Level "A" Training card, and ongoing product training and education are recommended; contact Cyphen Limited for more information and to schedule training classes.
